Thread: 7mm Large Ring

  1. #1
    Join Date
    Nov 2009
    Posts
    9

    Default 7mm Large Ring

    I want to convert a 7 x 57 Mauser large ring to a hunting rifle (I would not convert a military rifle in good condition). What is the best 7mm to look for? My understanding is that there are much more parts and accessories available for the large ring Mauser rather than the short ring variety.


  2. #2
    Join Date
    Nov 2009
    Location
    Oregon
    Posts
    233

    Default 7mm

    What do you mean by convert? for example I have a '09 Argentine that was action grade only and I bought a new barrel, for it to make it into a 7x57 my favorite cal. added a Timmy trigger, and scope she will blow the x out of the target at 100 yards, but I hand load, Speer 145gr or Hornady 154 gr over IMR 48 to 49 gr. Is that what you were asking? You can get barrels depending on your budget, ask a competent gunsmith where he gets his barrels from.

  3. #3
    Join Date
    Dec 1969
    Location
    Cascade Mts, Washington State
    Posts
    4,500

    Default

    my guess would be the 7mm venezuelan? used in the Olympics. there are some Brazilian 7mm's out there, but all had the 29 inch barrel. id guess something south American.
    7mm is a great deer round.
    PISDETS VSEMU

  4. #4
    Join Date
    Dec 1969
    Location
    Austn Tx
    Posts
    4,204

    Default

    South American contract VZ24's were also in 7mm...
    "There is no pleasure in having nothing to do. The fun is having lots to do and not doing it'"

  5. #5

    Default Which IMR powder?

    mjohansson2,

    You gave the powder weight but that doesn't help much if you don't identify the IMR powder you used.

  6. #6
    Join Date
    Nov 2009
    Posts
    9

    Purchased One

    Quote Originally Posted by solman View Post
    my guess would be the 7mm venezuelan? used in the Olympics. there are some Brazilian 7mm's out there, but all had the 29 inch barrel. id guess something south American.
    7mm is a great deer round.
    I was able to find a FN Venezuela 7mm in very good condition. When it arrives, I will post a photo - the stock has already been sporterized so I don't feel as if this is a "bubba" project.

  7. #7
    Join Date
    Dec 1969
    Location
    Oldsmar, FL (Tampa Bay)
    Posts
    23,254

    Default

    You are DOOOOOMED!

    All you need to get out of mauser Sporter Building Purgatory is to buy the following parts and complete a few simple tasks.:

    A sporter stock

    A sporter trigger

    A safety to clear a scope

    A low scope bolt handle - not the typical bend or forging

    Cut and crown the barrel

    Cut the receiver for the bolt handle

    Drill and tap for scope bases - using a jig.

    Polish and blue.

    Or just forget it and trot on down to Walmart and save a few bucks.
    I swear by Jupiter Optimus Maximus .... in the army of the consul Lucius Quinctius Cincinnatus and for 10 miles around it I will not steal anything worth more than a sestertius in any one day.

  8. #8
    Join Date
    Dec 1969
    Location
    alvin texas
    Posts
    323

    Default

    there are still a lot of czech vz-24's in 7mm mauser that would be perfect to convert to a hunting rifle.
    depending on your time frame it could cost very little to as much or more than one of those generic walmart remchesters that jjk308 is so crazy about.

    if your not on any time schedule just keep an eye on the auctions & classified areas on the forums you frequent to pick up parts & donor actions at good prices when they become availible.
    i've picked up the parts, donor action & barrels to assemble about 7 or 8 very nice sporters that way over the years for less money that one of those generic walmart remchesters that jjk308 is so crazy about.
    if you want it quick it will cost more but its not that expensive. a good vz-24 donor rifle should run you about $150, less if you have a c&r & can skip the middleman. sell the stock & sights to help recoupe a little bit of money.
    have your gunsmith recrown the barrel & trurn the step from the rear sight back to the next shoulder. have him d&t & weld on a new bolt handle while its there. a welded bolt handle looks a lot better than a forged handle & only cost a few bucks more.
    there are a few options on the safety too. you can go with a dayton traiser or buelher style, they are inexpensive & work well. or you can step up to a winchester style safety. it will run you about $80 to have a wisners safety fitted to your shroud or you can buy a dakota safety of about $130. i prefer the dakota.
    stocks can run from $60-$1,000+ depending on your tastes.


    if you dont have a goood smith nearby i would recomend skaggs gunsmithing or IT&D
    they both do high quality work at reasonable prices.
    a lot of smiths only like to work on remchesters and price everything else very high to run the mauser crowd off.

  9. #9
    Join Date
    Nov 2009
    Posts
    9

    Red face More Fun

    Quote Originally Posted by jjk308 View Post
    You are DOOOOOMED!

    All you need to get out of mauser Sporter Building Purgatory is to buy the following parts and complete a few simple tasks.:

    A sporter stock

    A sporter trigger

    A safety to clear a scope

    A low scope bolt handle - not the typical bend or forging

    Cut and crown the barrel

    Cut the receiver for the bolt handle

    Drill and tap for scope bases - using a jig.

    Polish and blue.

    Or just forget it and trot on down to Walmart and save a few bucks.
    This project promises to be more fun than going to Walmart. I will assemble the parts and have an excellent gunsmith who specialty is older rifles and Mausers do the actual work. Am thinking of a Boyd's JRS laminated stock and the Bold trigger sold by Boyd's with a safety also sold by Boyd's. What do you think of the Bold trigger?

  10. #10
    Join Date
    Dec 1969
    Location
    alvin texas
    Posts
    323

    Default

    its a good trigger, but i prefer a timney. if i bought a gun that already had a bold trigger i would more than likely leave it there but if i was buying a trigger for a project rifle i would spend a few bucks more on a timney.

  11. #11
    Join Date
    Nov 2009
    Posts
    9

    Default arrives Monday

    QUOTE=dirtyjim;1126977]there are still a lot of czech vz-24's in 7mm
    user that would be perfect to convert to a hunting rifle.
    depending on your time frame it could cost very little to as much or more than one of those generic walmart remchesters that jjk308 is so crazy about.

    if your not on any time schedule just keep an eye on the auctions & classified areas on the forums you frequent to pick up parts & donor actions at good prices when they become availible.
    i've picked up the parts, donor action & barrels to assemble about 7 or 8 very nice sporters that way over the years for less money that one of those generic walmart remchesters that jjk308 is so crazy about.
    if you want it quick it will cost more but its not that expensive. a good vz-24 donor rifle should run you about $150, less if you have a c&r & can skip the middleman. sell the stock & sights to help recoupe a little bit of money.
    have your gunsmith recrown the barrel & trurn the step from the rear sight back to the next shoulder. have him d&t & weld on a new bolt handle while its there. a welded bolt handle looks a lot better than a forged handle & only cost a few bucks more.
    there are a few options on the safety too. you can go with a dayton traiser or buelher style, they are inexpensive & work well. or you can step up to a winchester style safety. it will run you about $80 to have a wisners safety fitted to your shroud or you can buy a dakota safety of about $130. i prefer the dakota.
    stocks can run from $60-$1,000+ depending on your tastes.


    if you dont have a goood smith nearby i would recomend skaggs gunsmithing or IT&D
    they both do high quality work at reasonable prices.
    a lot of smiths only like to work on remchesters and price everything else very high to run the mauser crowd off.[/QUOTE]

    According to the UPS tracking, the rifle arrives on Monday and I will post a few pictures. A couple of questions. Is an integral safety on a new trigger a good idea? I know an integral trigger requires some additional work on a new stock. If you use an integral safety, does the factory safety still get in the way of the scope?

    I really want a rifle in 7 x 57 and found nothing in a new rifle is available at a reasonable cost except for the Ruger single-shot. Also, I found 7 x 57 barrels cost about $275 or more. There are no Wilson barrels in 7 x 57 in the $80 to $100 range. Hence, the search for a good used 7mm Mauser. The FN Venezuela Mauser in 7 x 57 which I purchased has a 23" barrel.

  12. #12
    Join Date
    Dec 1969
    Location
    alvin texas
    Posts
    323

    Default

    i prefer a winchester style safety mounted on the shroud but there is nothing wrong with the side safety triggers. as long as its inletted tight it doesn't look bad.
    if you go with a trigger safety you can plug the hole in the bolt shroud from the wing safety or replace the shroud with an aftermarket streamlined shroud. you can also just leave the original safety in the fire position & it won't interfere with the scope.
    in the long run it doesn't cost very much more to go with a aftermarket trigger & winchester style safety over a trigger with a safety & a streamlined shroud.

    here are a couple of examples of whats available.
    i removed this trigger from a remington 799 mini mauser & replaced it with a sako trigger, its typical of all side safety triggers. middle is a steamlined bolt shroud that is normaly used with side safety triggers. to the right is a dakota winchester style safety & bolt shroud that is used with military or aftermarket non-safety triggers.


    forged low-scope safetys for a 89 & a 95 mauser. these are made from the original military safetys.

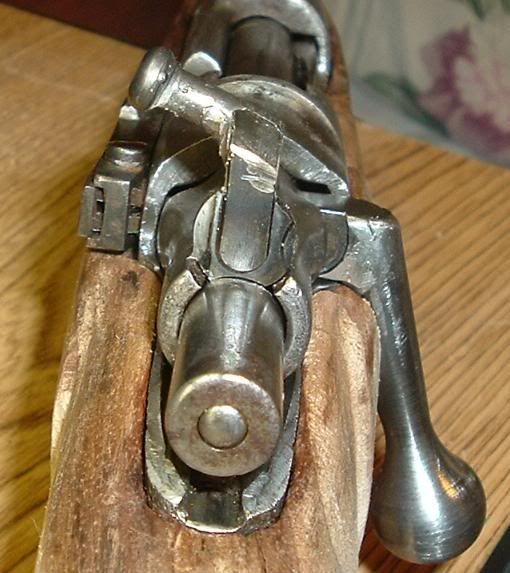

    welded low scope safety for a 93 mauser made from original safety.

    here is a military shroud thats been cut for a winchester style safety.

  13. #13
    Join Date
    Nov 2009
    Posts
    9

    Thumbs up Great Post & Pictures

    Quote Originally Posted by dirtyjim View Post
    i prefer a winchester style safety mounted on the shroud but there is nothing wrong with the side safety triggers. as long as its inletted tight it doesn't look bad.
    if you go with a trigger safety you can plug the hole in the bolt shroud from the wing safety or replace the shroud with an aftermarket streamlined shroud. you can also just leave the original safety in the fire position & it won't interfere with the scope.
    in the long run it doesn't cost very much more to go with a aftermarket trigger & winchester style safety over a trigger with a safety & a streamlined shroud.

    here are a couple of examples of whats available.
    i removed this trigger from a remington 799 mini mauser & replaced it with a sako trigger, its typical of all side safety triggers. middle is a steamlined bolt shroud that is normaly used with side safety triggers. to the right is a dakota winchester style safety & bolt shroud that is used with military or aftermarket non-safety triggers.


    forged low-scope safetys for a 89 & a 95 mauser. these are made from the original military safetys.

    welded low scope safety for a 93 mauser made from original safety.

    here is a military shroud thats been cut for a winchester style safety.
    I am leaning toward the side safety and a replacement bolt shroud supplied by Brownell's or Midway USA. Has anyone used The Boltman to weld/bend the bolt for a Mauser style rifle? The pictures of the bolts look great.

  14. #14
    Join Date
    Dec 1969
    Location
    Across the river from Eugene Oregon.
    Posts
    91

    Default

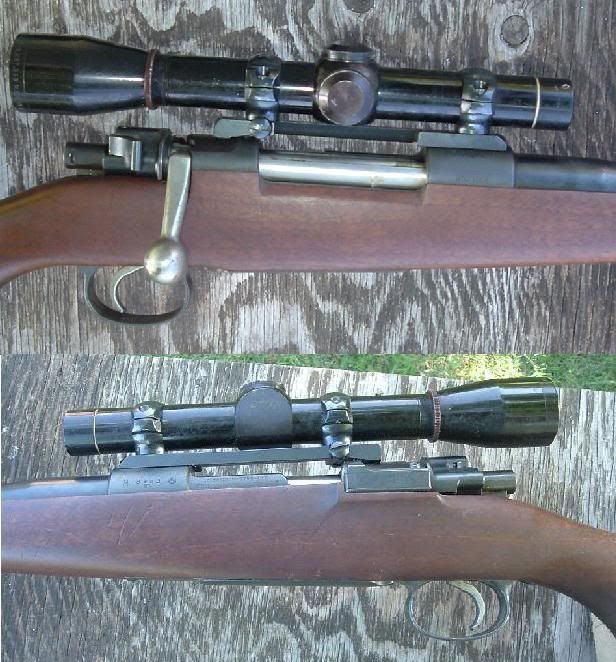

    Here's my Sporterized Czech Brno Brazilian 1908/34 7x57. I wish I could find a couple more in decent condition. IMO, one of the best '98 actions around.

  15. #15
    Join Date
    Nov 2009
    Posts
    9

    Thumbs up Bravo Zulu on the rifle

    Quote Originally Posted by Ron Smith View Post
    Here's my Sporterized Czech Brno Brazilian 1908/34 7x57. I wish I could find a couple more in decent condition. IMO, one of the best '98 actions around.
    Great job on the rifle! The stock sure looks great.

  16. #16
    Join Date
    Dec 1969
    Location
    Across the river from Eugene Oregon.
    Posts
    91

    Default

    Thanks! I've been doing stock for about 30 years or so. I bought the rifle from an estate. Someone had made an attempt at shaping it, but still pretty awkard looking. I was going to put a nice walnut stock on it, instead I decided to salvage the maple stock since it had some decent figure.

    I like German Classic Sporters, so I decided to build one that I could drag out into the woods without damageing an expensive rifle. I found this one at a local shop. The stock was sanded finished , but still basically the same as it came from the maker. I reshaped it into the Classic German design. It needs a bit more shaping and slimming.

    Ron

  17. #17
    Join Date
    Nov 2009
    Posts
    9

    Default Received FN Mauser 7mm 24/30 - pictures

    Received the FN Mauser. All three serial numbers match, receiver, bolt and barrel. The barrel rifling and bore are excellent. There is virtually no rust or pitting. The Venezeula crest on the receiver is in perfect condition. Does anyone know the twist rate on this rifle as shipped from the factory? I don't feel bad turning this into a hunting rifle since "Bubba" had already changed the butt plate, installed a different front sight and cut the stock. I will order a Boyd's JRS laminated stock that's finished, a Bold trigger with integral safety. The new shroud to replace the current safety is on its way from Midway USA (Brownell's had back-ordered this item).
