    Default Berlin Lubeck 237/duv Serial Study Continued

    Gentleman,

    As Vaughn has, I believe, abandoned his Berlin Lubeck serial study, I would like to take over stewardship of it and continue the information gathering. Vaughn, if you ever want it back, its yours...

    We will keep it pretty much the same, although I would like you guys to include barrel band data if you would to help further other research projects.

    Thanks,

    Mike

    “Hey guys collecting data on 1936-42 Berlin Lubeck K98's. For 1942 rifles please check if the top of the receiver is WaA214 or WaA749 stamped. I would also like to see if we can figure out, roughly, what months they stopped production in 1942 and how early zf41's were introduced in 1941.

    Please post data in the usual form. Since we’re here please give right receiver (RR) acceptance marks and if the Firing Proof is Nazi or Weimar to see when they did the Fire Proof transition. Hopefully we will also show when they went from 237 to duv in 1940.

    If you don't want to post your serial #’s you can send them to me via email. I will delete the email and not post any personal information, just the serial and other data will be added. My email is pzjgr$$@hotmail$$.com (remove the $$’s).

    Feel free to post pics of serials and markings if you would like…”

    36 S/237 1586 E/303 x3, RC, Weimar FP
    36 S/237 1759 E/303 x1, WaA303 x2, RC, Weimar FP
    36 S/237 2089 NIM, Weimar FP, Complete Depo Rework On 80% of Rifle Parts
    36 S/237 6914 RC
    36 S/237 7024 WaA26, RC, Weimar FP
    36 S/237 8305 WaA26, RC, Weimar FP
    36 S/237 8576 WaA26, RC, Weimar FP

    37 S/237 3976 WaA26, RC, Nazi FP
    37 S/237 4831 WaA26, RC, Nazi FP
    37 S/237 6053 WaA26, NIM, Matching, Nazi FP
    37 S/237 7341 WaA26, RC, Nazi FP
    37 S/237 8657 WaA26, NIM, Nazi FP
    37 S/237 2548 b WaA26, RC, Nazi FP
    37 S/237 3500 b WaA26, RC, Nazi FP
    37 S/237 8219 b WaA26, RC, Nazi FP
    37 S/237 9218 b WaA26, RC, Nazi FP
    37 S/237 132 d WaA26, RC, Nazi FP
    37 S/237 1788 d WaA26, NIM, Matching, Nazi FP, Has Unknown WaA81 Present
    37 S/237 4146 d WaA26, IM, Nazi FP, MM bolt, period replacement barrel + stock
    37 S/237 4795 d WaA26, Bolt M/M, Bring Back

    38 S/237 7002 WaA26, NIM, Nazi FP, All Matching Action
    38 S/237 9754 RC w/finger grooves in stock
    38 S/237 4526 a Luft marked
    38 S/237 8005 a WaA26, Matching
    38 S/237 8269 a WaA26 x3, RC, Nazi FP
    38 S/237 3792 b WaA26, IM, FBP, MM bolt, Nazi FP
    38 S/237 4093 b WaA26, RC, Nazi FP
    38 S/237 4289 b
    38 S/237 5171 c RC
    38 S/237 4461 c E/26 x4, NIM, Possible Depot Rework, MM
    38 237 8600 c
    38 237 632 d E/26, E/214 x2, RC, Nazi FP
    38 237 1894 d
    38 237 2732 d NIM, Nazi FP, Matching
    38 237 7968 d NIM, Mostly Matching
    38 237 8004 d NIM, Nazi FP
    38 237 9254 d IM, Nazi FP, Romanian look low bluing, peened WaA’s etc
    38 237 2437 e WaA26, IM, RC, Nazi FP
    38 237 625 f WaA26, E/214, RC, Nazi FP
    38 237 1587 f WaA26 x2, E214 x2, RC, Nazi FP
    38 237 3222 f
    38 237 6521 f WaA 214 x3, NIM, m/m bolt and stock
    38 S/237 7817 g E/26, E/214, NIM, Nazi FP, BBL Action Matching Only (YES S/237)
    38 237 1890 h
    38 S/237 2351 h WaA26, WaA214, NIM, Nazi FP, All Matching (YES S/237), WM (F LP W/E6)
    38 237 5886 h WaA214, RC, Nazi FP
    38 237 5896 h WaA214, RC, Nazi FP
    38 237 5555 k No Final (?), 3 E/26 RR
    38 237 1611 l

    39 237 66 matching except stock + bands which are 1939 214 code. Nazi FP.
    39 237 431
    39 237 1397
    39 237 1976 WaA214 x3, NIM, Nazi FP, Re-barrel
    39 237 2793
    39 237 6116 WaA214 x3, NIM, Nazi FP
    39 237 6839 EGRW, IRGC, Nazi & FP Scrubbed Rework
    39 237 6226 b WaA214, RC, Nazi FP, RT Side of receiver has WaA214x4!!
    39 237 7522 b WaA214, NIM, Nazi FP
    39 237 189 c E/214 x3, NIM, Nazi FP, no matching numbers
    39 237 2869 c
    39 237 7304 c WaA214, RC
    39 237 2341 d
    39 237 382 e Nazi FP, NIM, M/M Bolt
    39 237 1934 e WaA214, RC, Nazi FP
    39 237 4092 e
    39 237 6344 e bolt m/m
    39 237 2161 f SSR Sniper
    39 237 2679 f WaA214, NIM, Nazi FP
    39 237 5487 g WaA214, RC, Nazi FP
    39 237 7275 g WaA214, RC Empire, Nazi FP
    39 237 7397 g WaA214, RC, Nazi FP
    39 237 7134 h Nazi FP, NIM,
    39 237 7700 h
    39 237 7581 i WaA214, RC, Nazi FP
    39 237 2939 k WaA214, rechambered 8mm/06
    39 237 7451 k WaA214, RC, Nazi FP
    39 237 7900 k
    39 237 3487 l WaA214, RC, Nazi FP
    39 237 5525 l NIM, Matching, Nazi FP
    39 237 8104 l WaA214, Israeli, Nazi FP Scrubbed
    39 237 86 m
    39 237 2062 m
    39 237 6683 m
    39 237 7252 m RC, Nazi FP

    40 237 4388 Nazi FP, bolt M/M proofed w/"A" in a circle, w/ E/214 under pistol grip.
    40 237 6061 NIM, Mostly Matching
    40 237 8882
    40 237 1497 a WaA 214 x3, RC, Nazi FP
    40 237 7956 a RC Nazi FP WaA214 x3 on right of barrel
    40 237 8363 a E/214 x3
    40 237 3022 b
    40 237 4906 b
    40 237 6187 b E/214, RC, Nazi FP
    40 237 6559 b
    40 237 2449 c WaA214x3, RC, Nazi FP
    40 237 3374 c E/214 Final Acceptance
    40 237 3988 c
    40 237 5683 c
    40 237 6122 c WaA214 x3, OI, Nazi FP
    40 237 6225 c WaA214 x3, RC, Nazi FP
    40 237 8824 c WaA214 x3, RC, Nazi FP
    40 237 9756 c
    40 237 5743 d
    40 237 7628 d
    40 237 9144 d NIM, Nazi FP, Matching
    40 237 748 e WaA214, NIM, Nazi FP, Matching, Navy Marked Takedown Washer
    40 237 3832 f WaA214, RC, Nazi FP
    40 237 4000 f Nazi FP, RI, Ground FP's,
    40 237 1150 g
    40 237 4055 g WaA214, IM, RC, Nazi FP
    40 237 7722 g
    40 237 7646 h WaA214, RC, Nazi FP
    40 237 8121 h
    40 237 8471 h
    40 duv 2012 i WaA214 x3, NIM, Nazi FP, All Matching
    40 duv 2722 i E/214 x3, RC, Nazi FP,
    40 duv 3019 i WaA214, RC, Nazi FP Lost for alltime as a TSJC sporter
    40 duv 4999 i E/214 x3, RC, Nazi FP
    40 duv 7957 i Buffed, reblued, modified
    40 duv 8252 i RC
    40 duv 8452 i RC
    40 duv 9258 i WaA214, RC, Nazi FP
    40 duv 9879 i
    40 duv 1918 k WaA214,NIM, Nazi FP
    40 duv 4535 k WaA214, NIM, w/British MP disc in stock
    40 duv 4589 k WaA214 x3, IM, Nazi FP, Deactivated (England??)
    40 duv 4695 k
    40 duv 354 l
    40 duv 3211 l RC, Nazi FP
    40 duv 4564 l
    40 duv 6627 l

    41 duv 2203
    41 duv 5234 WaA214, RC, Nazi FP
    41 duv 5654 WaA214, RC
    41 duv 7434 WaA214, RC, Nazi FP
    41 duv 8490 WaA 214
    41 duv 8647
    41 duv 1713 a WaA214 x3, RC, IM, Nazi FP, Repro SSR type 3 SNIPER
    41 duv 5190 a E/214 x3, RC Empire, Nazi FP, SS2 Marked,
    41 duv 6080 a WaA214, NIM, Nazi FP Matching
    41 duv 8967 b R/C, LBUS, NIM. no "X". RR=214 3x's. No TE. Nazi FP, BC:40R357duv
    41 duv 1076 c NIM, Mostly Matching
    41 duv 4964 d WaA214, RC, Nazi FP
    41 duv 8671 d 214 x 3 RC
    41 duv 9050 d RC, Nazi FP,
    41 duv 5258 e all matched bringback
    41 duv 9333 e
    41 duv 6 f WaA214, RC, Nazi FP
    41 duv 1150 f WaA214, NIM, Nazi FP
    41 duv 5275 f WaA214, RC, Nazi FP
    41 duv 5550 f E/214 x3, NIM, Nazi FP,
    41 duv 6603 f WaA214, RC, Nazi FP

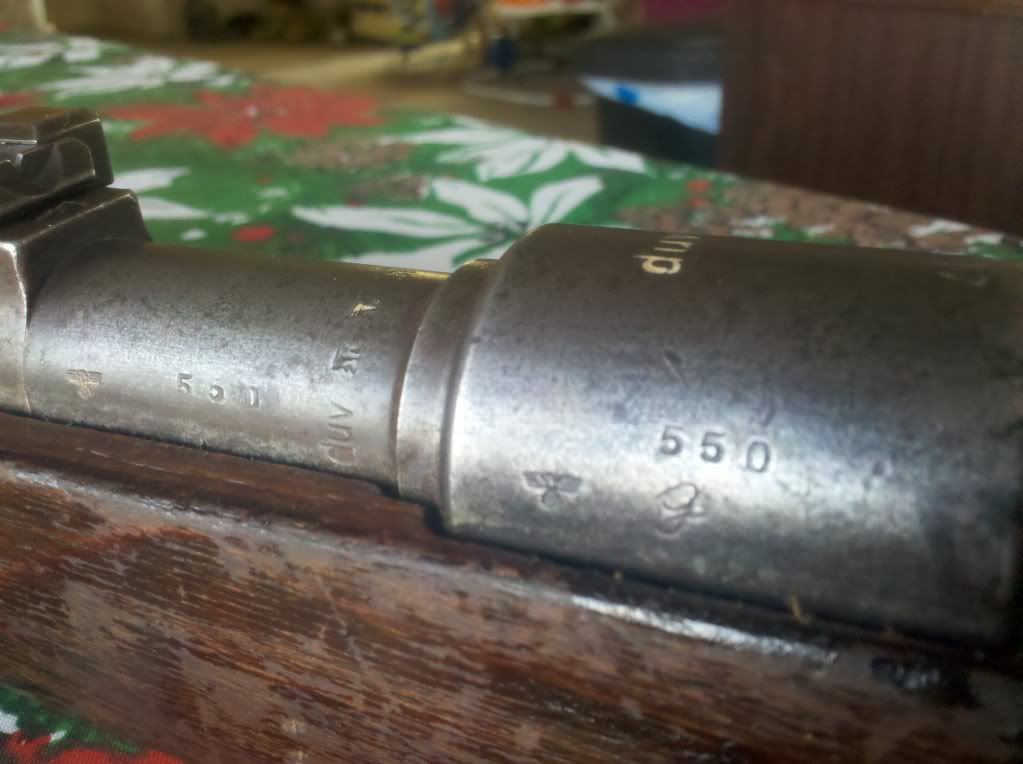

    41 duv 550 g Barrel Code - 41R5
    41 duv 1660 h
    41 duv 611 i WaA214, NIM, Naxi FP, All Matching
    41 duv 8952 i E/214x3, RC, Nazi FP
    41 duv 3047 k ZF41 flat roller mount, nim, fp, mfp, mtc, mlb, lbus
    41 duv 7093 k E/214 x3, NIM, Nazi FP
    41 duv 7788 k
    41 duv 2351 l
    41 duv 6874 l RC, has ZF-41 base on it
    41 duv 8234 l E/214 x3, RC, Nazi FP
    41 duv 514 m WaA214, RC, Nazi FP
    41 duv 1636 m
    41 duv 2143 m WaA214, NIM, Nazi FP
    41 duv 3725 m WaA214, Norwegian Rework, ZF-41
    41 duv 4473 m WaA214, NIM, Nazi FP, MM, ZF-41
    41 duv 6180 m RC, Nazi FP, ZF-41 Type 1 Roller Mount
    41 duv 7537 n (unconfirmed)
    41 duv 1713 o WaA214 x3, RC, Nazi FP
    41 duv 9395 o WaA214, NIM, Nazi FP Matching wood is dated '42
    41 duv 968 p WaA214, Nazi FP
    41 duv 2090 p WaA214, Nazi FP
    41 duv 8422 p WaA214, RC, Nazi FP, BCD41 Receiver

    42 duv 515 TE/214, NIM, Nazi FP, m/m floorplate
    42 duv 571 TE/214, RC, Nazi FP (swazs are punched)
    42 duv 1578 TE/214, E/214 x3 RHS
    42 duv 4031 waffenamt 214 on the r/s of receiver R/C
    42 duv 5714 TE/214, RC, Nazi FP
    42 duv 7448 TE/214, NIM, Nazi FP, M/M but Triggerguard
    42 duv 7755 TE/214, NIM, Nazi FP, Sporter, ZF-41
    42 duv 3729 a TE/214, Vet Bringback, Duffle cut
    42 duv 5118 a TE/214, RC, Nazi FP
    42 duv 8877 a TE/214, RC, Nazi FP
    42 duv 1213 b TE/214, RC, Nazi FP
    42 duv 2313 b TE/214, RC, Nazi FP
    42 duv 2850 b TE/214
    42 duv 3916 b TE/214, E/214 x1 RHS, NIM, Nazi FP
    42 duv 7486 b
    42 duv 8216 c TE/214, RC, Nazi FP
    42 duv 9975 c TE/214, NIM, Bolt M/M, Nazi FP
    42 duv 383 d TE/214, NIM, Nazi FP Repro HT Sniper
    42 duv 1734 d TE/214, vet bring back, duffle cut, bolt M/M
    42 duv 2567 d RC, Nazi FP
    42 duv 3833 d
    42 duv 4625 d TE/214, NIM, Nazi FP
    42 duv 5538 d E/214 Final
    42 duv 9354 d
    42 duv 5419 e TE/214 NIM, CBP, FLP/MM, MTG, MLB, SMUB, Nazi FP
    42 duv 9689 e E/214 Final Acceptance
    42 duv 379 f TE/214, NIM, Nazi FP, ZF/41
    42 duv 1215 f TE/214, NIM
    42 duv 8112 f TE/214, Nazi FP ZF/41
    42 duv 9152 f
    42 duv 2288 g TE/214, LBUS, Nazi FP, MLB, SMUB
    42 duv 4968 g TE/214, RC, Nazi FP
    42 duv 6288 g TE/214, E/N, ZF41, Bolt M/M, Nazi FP
    42 duv 6800 g TE/214, Nazi FP
    42 duv 720 h TE/214, Nazi FP,
    42 duv 1665 h TE/214, RC, Nazi FP
    42 duv 2381 h all matched bringback
    42 duv 3098 h TE/unknown, Nazi FP, Sporter 275 Rigby
    42 duv 6734 h TE/214, RC, Nazi FP, IM, M/M
    42 duv 8297 h TE/214, Nazi FP, Total Miss-match
    42 duv 1312 i TE/214, RC, Nazi FP
    42 duv 1746 i TE/214, NIM, Nazi FP, 1939 ink marked under FBP w/"L" stamp, 44 dated barrel re-wo rk matching
    42 duv 8964 l

    BCD 42 Production

    42 duv 8903 p TE/749, LBUS, NIM, Nazi FP Elm/Oak Stock
    42 duv 9562 p TE/749, LBUS, RC, Nazi FP
    42 duv 9690 p TE/749, LBUS, NIM, Nazi FP
    42 duv 4967 q TE/749, LBRS, NIM, Nazi FP, matching/sanded stock barrel E/623 x3
    42 duv 8507 q TE/749, LBUS, RC

    Start bcd 43 production....

    42 duv 0054 r TE/749, LBRS, NIM, Nazi FP Reworked, Rebarreled WaA623
    42 duv 1451 r TE/749, LBRS, NIM, Nazi FP, RC, Matching
    42 duv 2030 r TE/749, LBRS, NIM, Nazi FP, Matching
    42 duv 2910 r TE/749, LBRS,
    42 duv 3180 r TE/749, RC
    42 duv 4027 r TE/749
    42 duv 6061 r TE/749, LBRS, NIM, Nazi FP, Matching
    42 duv 6531 r TE/749, LBRS, Matching, NIM, "c" Stock
    42 duv 7097 r TE/749, LBRS,
    42 duv 8691 r TE/749, LBRS, RC, Nazi FP
    42 duv 9793 r TE/749, LBRS,
    42 duv 2983 s TE/749, LBRS, RC, Nazi FP
    42 duv 3497 s TE/749, LBRS,
    42 duv 4330 s TE/749, LBRS, Nazi FP,
    42 duv 8406 s TE/749, LBRS, NIM, Nazi FP
    42 duv 9050 s TE/749, LBRS,

    UNCONFIMRED!!!!!!!!!!!!!!!!!!!!!

    42 duv 4510 g TE749, Nazi FP


    FBP = flat buttplate
    IM = import marked
    NIM = non-import marked
    FP = fire proofing
    MFP = machined floorplate
    MTG = machined triggerguard
    o/w = otherwise
    m/m = mismatched
    MLB = milled lower band
    SMUB = speed milled upper band
    CBP = cupped butt plate
    EP = electropenciled
    WM = Waffenmeister (Armorers Part)
    FLP = Floorplate
    TE = Top of Receiver Ring Eagle Proof- Top Eagle
    LBRS = Letter Block Right of Serial
    LBUS = Letter Block Under Serial

    “Miscellaneous info & the 3 Different Types of duv 42 Rifles

    duv 43 is the Lochness monster of 98k’s, grainy pics, second hand info etc. Berlin Lubeck quit SO early in 1942 making K98's, it probably could not have happened.

    Berlin Lubeck final acceptance WaA214 serial range - No letter block to “I” letter block (or early “k” as reported but no confirmation)

    Per serial ranges of the BCD42 production, you will see that they ended about “p” block, and is where the first DUV42 “p” block rifles show up and have the exact type of assembly to BCD42 with Top WaA of 749 and the serial stamped in the same fashion as they did in 1942 with serial with Letter block under serial (LBUS) and assembled them p (P) -q (Q) block thus far.

    The next duv 42 range is “r” – “s”. Now I thought is was very weird how it LOOKS like it continues in the “p”- “s” block but it is NOT!!!! It wasn't till about “d” block of 1943 when BCD43 switched to letter block from under the serial (LBUS) to serial block to the right of the serial (LBRS) and this is seen with every observation for the “r” and “s” letter block and they either used left over, rejected, or found receviers in this serial range. This is also compounded that the barrels are also dated 1943. There is also the point where bcd scrubbed duv 42 marked receivers and remarked them. This was probably done at Astra-Werke since BCD was only an assembler.

    I expect the serial to get deeper than known but I beleieve this will be about it if you add up the blocks from the BCD production. You get about 40,000 receivers made by Berlin Lubeck and if they didn't halt production this would have put them in the “n” and “o” serials, easily, which is about what they did in 1941. To me you would think they would do better but the stop in production I think hurt their potential and we will never know how many k98s Berlin Lubeck could have produced in 1942. Now this can be thrown off by a couple of here and there receivers used in very spotty places as we do know bcd 43 went into double suffixes. A receiver or two could pop up in the reported “y” block (laws observation?) since bcd 42 never got this high.

    Thanks,
    Vaughn”
    Last edited by pzjgr; 08-09-2011 at 02:50 PM.

  2. #2
    Join Date
    Dec 1969
    Location
    Somewhere in the nether regions... :)
    Posts
    10,421

    Default

    Ah, Lubeck... my second favourite maker.

    Here's mine - all matching except the triggerguard screws (ANYONE got 05 TG screws?) I was told by the prior owner the screws were lost when the vet disassembled it to bring home - probable story too I believe.

    Here it is - 8005a, S/237 1938. Luftwaffe, walnut. A friend has S237 1938, also Luft., serial 4526a - laminate stock
    Attached Thumbnails Attached Thumbnails coll-19.JPG   coll-06.JPG   coll-38.JPG   coll-23.JPG   coll-47.JPG   coll-28.JPG

    coll-25.JPG   coll-27.JPG   coll-09.JPG   coll-18.JPG   coll-13.JPG   coll-26.JPG

    I'm Lewie the Fly...



  3. #3
    Join Date
    Oct 2008
    Posts
    2,741

    Default

    Here's mine:
    RC's

    39 / 237 / 86m
    42 / duv / 8964L (lower case)

  4. #4
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Thanks guys, data added.

    Vulch, I had added yours from Vaughns thread, but its good to have the pics here....sweet rifle by the way, a real looker! That wood gives me wood....

    Cousinkix....Can you check what you have for a final acceptance stamp (the WaA right on the top of the receiver), whether it is E/214 or E/749? An "l" block is by far the latest Berlin Lubeck production gun in 42 if it is E/214 marked....

    Also if you haven't given them before barrel codes would be helpful!

  5. #5
    Join Date
    Dec 1969
    Posts
    941

    Default

    Hello Pzjgr, one to add,
    #2161 f FBP, NIM, FP, MFP, MTG, MLB, LBUS.
    And some pictures - as you can see a SSR - I believe to be legit and has been looked at by several RKI's who agree.
    Skid
    Attached Thumbnails Attached Thumbnails MVC-001F.JPG   MVC-002F.JPG   MVC-003F.JPG   MVC-004F.JPG   MVC-006F.JPG   MVC-017F.JPG

    MVC-020F.JPG   MVC-021F.JPG   MVC-027F.JPG   MVC-005F.JPG

  6. #6
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Thanks Skid....although I don't see any pics of the top of your receiver, and you didn't specify code or year (though it has a 39 dated barrel so I am guessing its a 39 237, but want to verify)

  7. #7
    Join Date
    Dec 1969
    Posts
    941

    Default

    Ooops, sorry about that, here you go. Yes, 1939 237. Skid
    Attached Thumbnails Attached Thumbnails MVC-007F.JPG   MVC-009F.JPG   MVC-011F.JPG

  8. #8
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Added, thanks much Skid.

  9. #9
    Join Date
    Sep 2010
    Location
    downrange
    Posts
    195

    Default

    Mine is 1941 duv, with a script "g" under the serial number, which is "550". it is not Russian capture marked, and no markings are peened. Imported from Germany. I don't know exactly what's what, so I'll post a pic..





    - Spike
    Last edited by Spike 7.62; 12-16-2010 at 01:38 PM. Reason: i am an idiot and cant read numbers
    When yer wounded an' left on Afghanistan's plains,
    An' the women come out to cut up yer remains,
    Just roll to yer rifle an' blow out yer brains,
    An' go to yer God like a Soldier.
    -Rudyard Kipling, in the Korengal Valley

    How many bears could Bear Grylls grill if Bear Grylls could grill bears?

    Two to the chest, one to the head, the ones won over are the ones who are dead.

  10. #10
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Thanks Spike, sounds like a "g" 1942 rifle...the Germans numbered their rifles 1-9999 (usually, there are exceptions), then after 9999 started over at 1, but added a letter suffix, "a", then "b", and so on....high number production years they even went to double letters...check to see if all the serial numbers on the parts match, and if you can post the barrel code (usually under the woodline, so you'd have to remove the action from the stock to see it)....barrel codes are especially helpful in research...

  11. #11
    Join Date
    Sep 2010
    Location
    downrange
    Posts
    195

    Default

    I looked just now, the barrel code is "41R5", its in line with the "duv" mark but in a different and larger font. Further up on the barrel is a lone "K".
    When yer wounded an' left on Afghanistan's plains,
    An' the women come out to cut up yer remains,
    Just roll to yer rifle an' blow out yer brains,
    An' go to yer God like a Soldier.
    -Rudyard Kipling, in the Korengal Valley

    How many bears could Bear Grylls grill if Bear Grylls could grill bears?

    Two to the chest, one to the head, the ones won over are the ones who are dead.

  12. #12
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Spike....I am at work, and therefore cannot see any pics (they don't upload here...) and will not be able to see them until I get home. Could you double check your rifle as suggested by Simson? Just want to make sure everything is accurate, especially as this info is important in the research...

    Thanks,

    Mike

  13. #13
    Join Date
    Sep 2010
    Location
    downrange
    Posts
    195

    Default

    My sincerest apologies! The rifle is 1941, writing 1942 was a typo error and a brain fart, considering I had the rifle right in front of me. duv 41, serial 550 g, barrel code 41R5. Sorry again for the brain-to-fingers fail.

    - Spike
    When yer wounded an' left on Afghanistan's plains,
    An' the women come out to cut up yer remains,
    Just roll to yer rifle an' blow out yer brains,
    An' go to yer God like a Soldier.
    -Rudyard Kipling, in the Korengal Valley

    How many bears could Bear Grylls grill if Bear Grylls could grill bears?

    Two to the chest, one to the head, the ones won over are the ones who are dead.

  14. #14
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    No problem, your efforts are appreciated!

    ETA Main list fixed....

    And I love that Kipling poem in your sig line....as true today as it was then too....

  15. #15
    Join Date
    Dec 1969
    Posts
    2,532

    Default

    Thanks for double checking- fits perfectly with rifles around it.

  16. #16
    Join Date
    Dec 1969
    Posts
    675

    Default

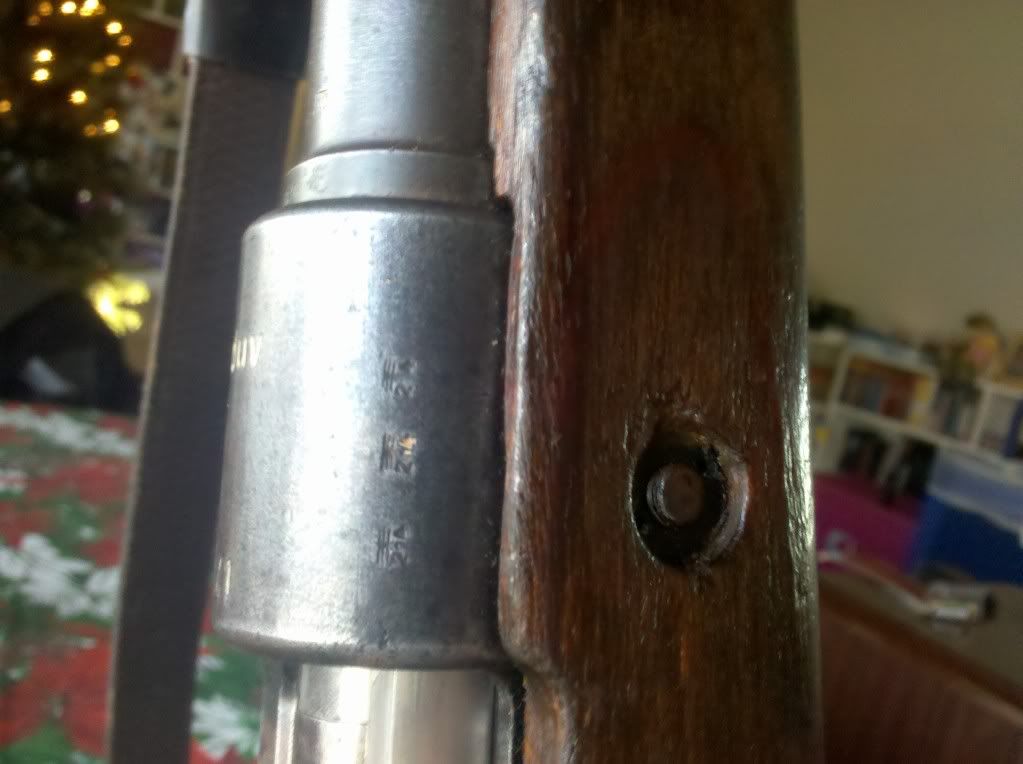

    the 3x E214 on the side of recevier is dead give away for 1941. 1942 they stopped this process and moved to top of rec . did't really abandon over the last few moths i have had only 2 reports given to me and i updated the thread. Berlin Lubeck are a scarce manufacturer for observations. so much so they never sticked this for me on gunboards forum. they have it sticked elsewheres which still brings in very few reports. I have added 27 to the list from my own research 3 from others progess none the less .

    later
    vaughn

  17. #17
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Hey Vaughn, I could have swore you posted something along the lines that other interests were taking over and you had abandoned the list, but as it is yours, I will happily turn the reigns back over if you want it....I just didn't want to see the study fade away....

  18. #18
    Join Date
    Dec 1969
    Posts
    675

    Default

    Hello,

    yep you are correct i did take a break from checking daily for hours the fourms. i did forget to mention that i turned on a email to be sent to me when some one posts to the thread while i was on hiatus no harm. all is good and updated. my most hits came from the g/k43 forum. i have forgetten to copy the list from there to here when updated ill check it over add whats here to there and update here. that what made me look at your post as it has been months since i have had a reply from here on my original post.

    later
    vaughn

  19. #19
    Join Date
    Dec 2008
    Location
    Norway
    Posts
    304

    Default

    DUV 41, 3725 m, waA 214, CBP, zf41 type 2 base. norwegian 30-06 rework.

    You can see my rifle in this thread: http://forums.gunboards.com/showthre...an-duv-41-zf41

    I'm still not sure if this rifle is a real german zf41 rifle, or if it's been put together in the norwegian arsenal.
    The bad point is the stock cut out. It looks half finished.
    The good points:
    Correct code: DUV 41
    Most serialnumbers match, including receiver, bolt (bolthandle root is renumbered, but everything else match, and boltbody has the correct proofs), stock , rearsightbase (the ring that goes around the barrel has no SN, only a single e/214).
    The serial number falls in line with 2 other zf41 rifles in the above list.

    If the arsenal at Kongsberg took a random k98k and equipted it with a zf41 reasight base, whats the odds it would be a DUV 41 with sn 3725 m?

    Any input on this rifle is greatly appreciated.

    Since my scope is broken , I tried to get a repro scope from both Sarco and Numrich. Unfortunately export of repro zf41's are banned because they could fall into the hands of terrorists
    Finally I found a german shop that sells them Just need to save up some cash.

  20. #20
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Added it, thanks! Looks like they were making quite a few ZF-41's in the k-m block, so it certainly fits....

  21. #21
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Added another 42 "d" block I saw at a show today....

  22. #22
    Join Date
    Nov 2009
    Location
    North of Boston, MA
    Posts
    161

    Default

    mine is a 1940 237 3374c RC peened eagles WaAh214

  23. #23
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Added, as was Beswick's from the other board...thanks much!

  24. #24
    Join Date
    Dec 1969
    Posts
    675

    Default

    hello pzjgr,

    you made a mistake when coping the thread over you made both BCD43 and BCD42 as 1 section all under bcd42 which is incorrect. break at ser54 r (R) that starts the BCD43 serial observations.

    later
    vaughn

  25. #25
    Join Date
    Sep 2007
    Location
    West Texas
    Posts
    608

    Default

    Just got this 1938 237, 5555K, NIM, but a RC with no X





    AC
    "We're Paratroopers, Lieutenant. We're supposed to be surrounded."
    -Captain Richard Winters
    Co E, 101st Airborne Division, WWII

  26. #26
    Join Date
    Dec 1969
    Posts
    2,162

    Default

    Updated with 4 new ones...Thanks AC...

  27. #27
    Join Date
    Feb 2010
    Location
    central florida
    Posts
    349

    Default

    pzjgr, I've showed this before, but I don't think it's on your list. It's a duv42 assembled by gustloff and has a steyr barrel on it. All matching including stock but as you can see, it's been sanded. Hope it fits in. Thanks
    Attached Thumbnails Attached Thumbnails 1a.jpg   2a.jpg   3a.jpg   4a.jpg   5a.jpg   6a.jpg

    7a.jpg   8a.jpg   9a.jpg   10a.jpg   11a.jpg   12a.jpg

    I'm against picketing protesters, but I don't know how to express myself!

  28. #28
    Join Date
    Feb 2010
    Location
    central florida
    Posts
    349

    Default

    two more photos
    Attached Thumbnails Attached Thumbnails 17a.jpg   18a.jpg
    I'm against picketing protesters, but I don't know how to express myself!

  29. #29
    Join Date
    Mar 2008
    Location
    Mississippi
    Posts
    24

    Default

    Please add this one to your list if you would like.

    42 duv 9805c, TE/214, NIM, Nazi FP, MM, MLB, CBP, LBUS
    Last edited by swfan601; 03-14-2014 at 03:06 PM. Reason: correction

  30. #30
    Join Date
    Mar 2014
    Posts
    6

    Default

    Mine is 100% matching, no import stamped, GI- bring back

    42 duv 2204 e, 214; the e is under the serial. There are Eagle 214 stamps on the top of receiver ring and left side of barrel shank. There are Nazi Eagles with swastikas on the left side of barrel shank and receiver ring.

    All metal parts are marked with 2204 except for the unmarked screws and the unserialed cupped buttplate with dwc and waa 642 on it. , There are only two digits (04) on the bolt stop, sight elevator, and extractor.

    The stock and handguard, red glue laminates are 2204 in the barrel channel. It also has an L&F sling adjuster on the sling.
    Last edited by sbrmike; 03-15-2014 at 07:51 AM.

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
